OpenTelemetry#

OpenTelemetry is an open-source observability framework designed to provide a unified standard for collecting and exporting telemetry data such as traces, metrics, and logs. It aims to make observability a built-in feature of software development, simplifying the integration and standardization of telemetry data across various services. For more details, you can read the official OpenTelemetry documentation.

Quick Start#

To use OpenTelemetry in FastStream, you just need to:

  1. Install FastStream along with opentelemetry-sdk and opentelemetry-exporter-otlp

    pip install "faststream[otel]" opentelemetry-exporter-otlp

  2. Configure TracerProvider with the gRPC exporter:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
    from opentelemetry import trace
from opentelemetry.sdk.resources import Resource
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.exporter.otlp.proto.grpc.trace_exporter import OTLPSpanExporter
from opentelemetry.sdk.trace.export import BatchSpanProcessor

resource = Resource.create(attributes={"service.name": "faststream"})
tracer_provider = TracerProvider(resource=resource)
trace.set_tracer_provider(tracer_provider)
exporter = OTLPSpanExporter(endpoint="http://localhost:4317")
processor = BatchSpanProcessor(exporter)
tracer_provider.add_span_processor(processor)

  3. Add TelemetryMiddleware to your broker:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
from faststream import FastStream
from faststream.kafka import KafkaBroker
from faststream.kafka.opentelemetry import KafkaTelemetryMiddleware

broker = KafkaBroker(
    middlewares=(
        KafkaTelemetryMiddleware(tracer_provider=tracer_provider),
    )
)
app = FastStream(broker)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
from faststream import FastStream
from faststream.confluent import KafkaBroker
from faststream.confluent.opentelemetry import KafkaTelemetryMiddleware

broker = KafkaBroker(
    middlewares=(
        KafkaTelemetryMiddleware(tracer_provider=tracer_provider)
    )
)
app = FastStream(broker)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
from faststream import FastStream
from faststream.rabbit import RabbitBroker
from faststream.rabbit.opentelemetry import RabbitTelemetryMiddleware

broker = RabbitBroker(
    middlewares=(
        RabbitTelemetryMiddleware(tracer_provider=tracer_provider),
    )
)
app = FastStream(broker)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
from faststream import FastStream
from faststream.nats import NatsBroker
from faststream.nats.opentelemetry import NatsTelemetryMiddleware

broker = NatsBroker(
    middlewares=(
        NatsTelemetryMiddleware(tracer_provider=tracer_provider),
    )
)
app = FastStream(broker)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
from faststream import FastStream
from faststream.redis import RedisBroker
from faststream.redis.opentelemetry import RedisTelemetryMiddleware

broker = RedisBroker(
    middlewares=(
        RedisTelemetryMiddleware(tracer_provider=tracer_provider),
    )
)
app = FastStream(broker)

In the following documentation sections, you can find detailed information about all OpenTelemetry features available in FastStream.

OpenTelemetry FastStream Example#

You can also take a look at a pre-configured project and use it as a reference for your services and infrastructure.

To see how to set up, visualize, and configure tracing for FastStream services, checkout the example project.

The example includes:

  • Three FastStream services
  • Exporting traces to Grafana Tempo via gRPC
  • Visualization of traces using Grafana
  • Collecting metrics and exporting them with Prometheus
  • A Grafana dashboard for metrics
  • Examples with custom spans
  • A pre-configured docker-compose with the entire infrastructure

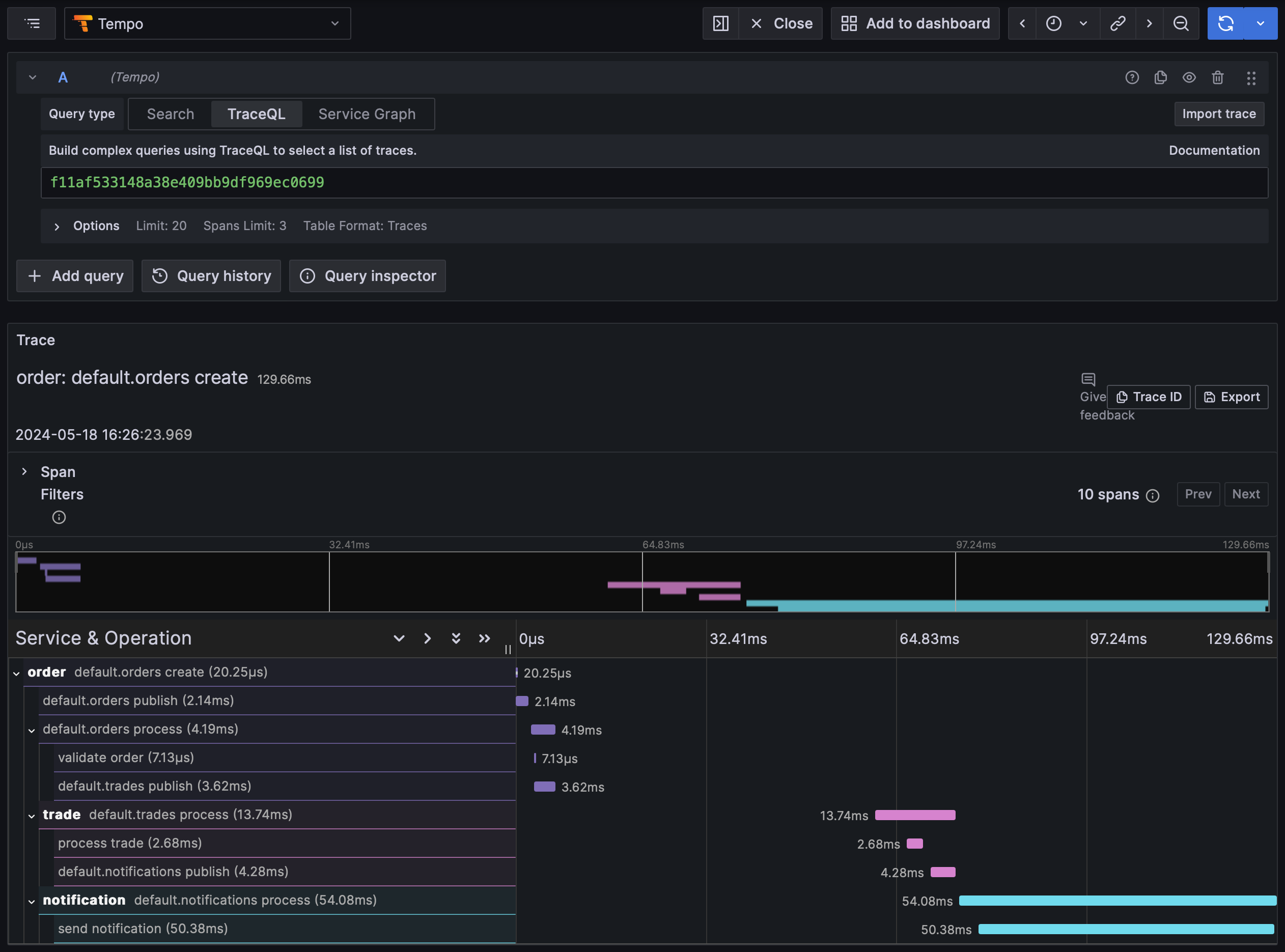

HTML-page Visualized via Grafana and Tempo
